Mobile Light Tower Generator Diesel Light Tower Lamp 4×500W LED Industrial Light Tower

Brand Name:	SANROCK POWER
Model Number:	SPDT7000PLED
MOQ:	1 set
Price:	Chat with supplier now for more details.
Packaging Details:	Nude package for machines, Wooden box package for spare parts, Or customer demand.
Payment Terms:	MoneyGram,Western Union,T/T,D/P,D/A,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang, China

Certification:

CE, ISO9001,ISO 14001/OHS18001

Product Nam:

Mobile Light Tower

Engine:

Perkins Or Kubota

Voltage:

230V , 240V

Frequency:

50/60 Hz

Height Extended Fully:

9m (12m Optional)

Light Type:

Usage:

Emergency Lighting, Mining, Construction Site

Air Intake Methed:

Naturally Aspirated

Light Angle Adjust:

Electric Actuator

Fuel Tank:

4*500W

Operate Time:

170 Hours

Lamp Luminous Flux(lm):

300000

Power Supply:

Fuel Tank Capacity:

Max Towing Speed:

80km/h

Working Temperature:

-45ºC-55ºC

Alternator::

Chinese/Brushless/STAMFORD

Mast Lifting Method:

Manual/Electricwitch/Hydraulic

Type:

Power Indicator Light, Warning Indicator Light, Function Indicator Light, Status Indicator Light.

Dimension:

3000*1538*2800mm

Gross Weight:

1350kg

Supply Ability:

100000set/month

Highlight:

diesel light tower 4×500W LED

industrial light tower generator

mobile LED light tower diesel

Product Description

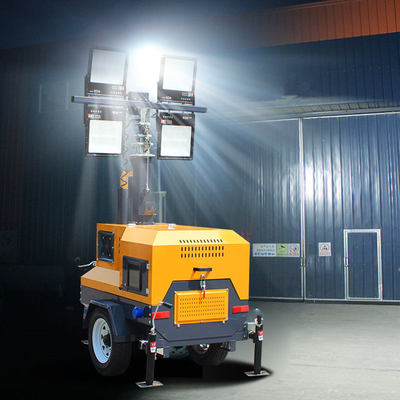

Mobile Light Tower Generator Diesel Light Tower Lamp 4×500W LED Industrial Light Tower 0

All-Weather Durability: enclosures protect critical components from dust, rain, and temperature extremes (-45°C to 55°C).

Feature highlights:This 9m (12m optional) hydraulic light tower, powered by a Japan Kubota D1105 diesel engine, delivers robust outdoor lighting with 4x500W LEDs and a luminous flux of 300,000 LM. It features a hydraulic mast, SmartGen ALC708 controller, and a 100L fuel tank for 170 hours of operation. Certified with CE, ensuring compliance with EU safety standards and providing market access.
Supplier highlights:This supplier is both a manufacturer and trader, offering quality control, full customization, and design customization.

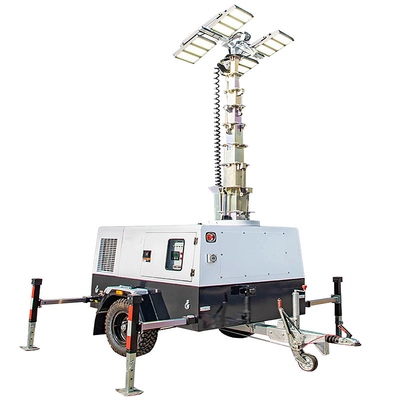

Mobile Light Tower Generator Diesel Light Tower Lamp 4×500W LED Industrial Light Tower 1

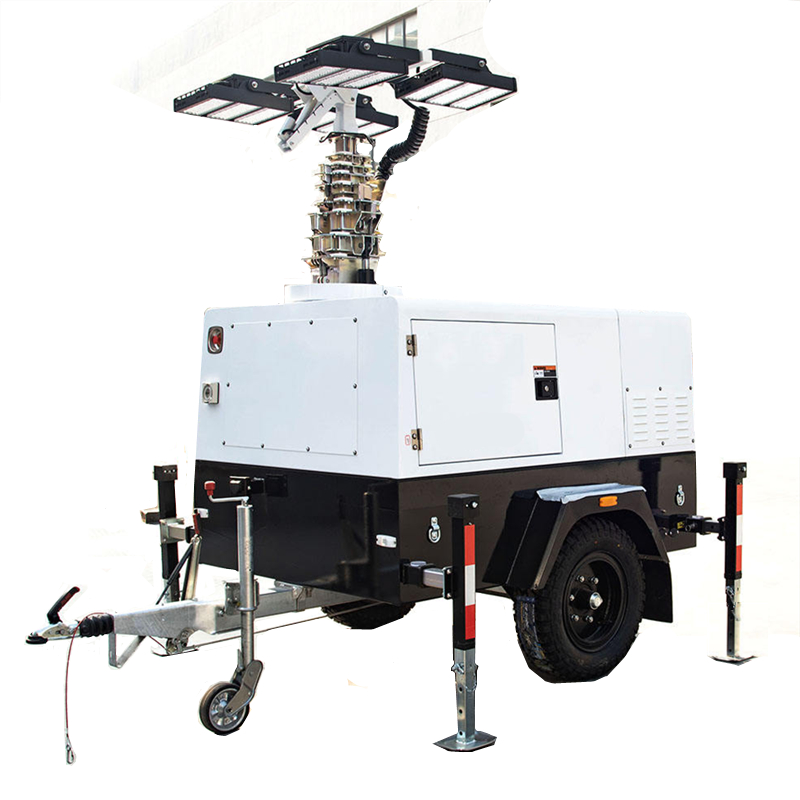

Mobile Light Tower Generator Diesel Light Tower Lamp 4×500W LED Industrial Light Tower 2

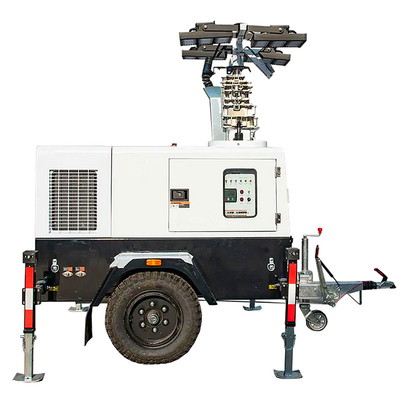

Mobile Light Tower Generator Diesel Light Tower Lamp 4×500W LED Industrial Light Tower 3


Industrial diesel light tower often deployed near ports, industrial zones, or remote coastal facilities. Powered by high-capacity diesel generators, the lighthouse ensures uninterrupted operation of its high-intensity beacon, even in off-grid locations or during power outages. The system integrates industrial-grade fuel storage tanks, a utomated generator controls, and fail-safe redundancies to maintain continuous illumination for critical shipping lanes or industrial operations. Advanced features may include weatherproof optical lenses, remote monitoring systems, and compatibility with auxiliary solar/hybrid power setups to enhance sustainability. Built to comply with industrial safety standards, such lighthouses prioritize durability, energy autonomy, and low-maintenance operation, making them vital assets for safeguarding industrial maritime activities in harsh or isolated settings.

Can you do OEM for me?

We accept all OEM orders,just contact us and give me your design. we will offer you a reasonable price and make samples for you ASAP.

How can I place the order?

Sign the PI,pay deposit,we will arrange the production. After finished production pay balance. Finally we will ship the goods.

Technical Parameter

MODEL	SPDT7000PLED
Genset Prime rated Power (KW) 50/60hz	7kw/50hz 9kw/60hz
Dimension	300015382800mm 1350kg
Height extended fully	9m (12m optional)
Engine
Engine Model	Perkins, 4 stroke,water-cooled, Naturally aspirated
Rated Speed(rpm)	1500/1800
Cylinder No.	3
Alternator
Alternator Model	Meccalte LT3N-1604
Frequency (HZ)	50/60
Rated voltage	230V (50HZ), 240(60HZ) AC
Insulation class	Class H
Protection grade	IP23
Mast and Light
Light type	LED
Luminous Flux	300000 LM
Light Qty x WATT	4×500W
Mast Sections	9
Mast lifting method	Hydraulic
Mast Rotation	No/355 degrees optional
Light Angle Adjust	Electric actuator
Trailer with VIN
Suspension	Leaf spring with mechanical braker
Towing Bar	Foldable Tow bar with Jockey wheel
Stabilizing Leg	4Pcs Manual Stabilizing Leg
Rim & Tyre	14"
Towing coupler	50mm ball / 70mm Ring
Tail Lights	complex tail light
Max Towing speed	80km/h
Other Item
Fuel Tank Type	Metal
Fuel Tank capacity	100L
Operating hours	170 Hrs
Controller	SmartGen ALC708
Output	2 receptacles
Max.Against Wind	20 m/s (45mph)
Noise level dBA@7M	63dB(A) at 7m
Max.Loading Qty by 40HQ	7

Mobile Light Tower Generator Diesel Light Tower Lamp 4×500W LED Industrial Light Tower 11

Mobile Light Tower Generator Diesel Light Tower Lamp 4×500W LED Industrial Light Tower 12

Mobile Light Tower Generator Diesel Light Tower Lamp 4×500W LED Industrial Light Tower 13

Mobile Light Tower Generator Diesel Light Tower Lamp 4×500W LED Industrial Light Tower 14

Mobile Light Tower Generator Diesel Light Tower Lamp 4×500W LED Industrial Light Tower 15

Mobile Light Tower Generator Diesel Light Tower Lamp 4×500W LED Industrial Light Tower 16

Mobile Light Tower Generator Diesel Light Tower Lamp 4×500W LED Industrial Light Tower 17

Mobile Light Tower Generator Diesel Light Tower Lamp 4×500W LED Industrial Light Tower 18

Mobile Light Tower Generator Diesel Light Tower Lamp 4×500W LED Industrial Light Tower 19

Mobile Light Tower Generator Diesel Light Tower Lamp 4×500W LED Industrial Light Tower 20

Mobile Light Tower Generator Diesel Light Tower Lamp 4×500W LED Industrial Light Tower 21

Mobile Light Tower Generator Diesel Light Tower Lamp 4×500W LED Industrial Light Tower 22

Mobile Light Tower Generator Diesel Light Tower Lamp 4×500W LED Industrial Light Tower 23

FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck

3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
