Customized Water Pump Set Compact Self Priming Chemical Pump High Pressure Centrifugal Water Pump

Brand Name:	SANROCK POWER
Model Number:	SP450QZ-25TP
MOQ:	1 set
Price:	Chat with supplier now for more details.
Packaging Details:	Nude package for machines, Wooden box package for spare parts, Or customer demand.
Payment Terms:	MoneyGram,Western Union,T/T,D/P,D/A,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang, China

Certification:

OEM, ODM, OBM

Document:

Power Source:

Diesel Engine

Application:

Sewage Pump, Slurry Pump,Drainage Water Pump, Irrigation Pump, Etc

Product Name:

Self Priming Pump

Advantage:

Long Working Life

Structure:

Multistage Pump,Single-stage Pump,Piston Pump,match Veriety Of Pump,Other

Color:

Blue,Blue/OEM,any Color,customer Design,Customer's Requirements

Start Up:

Electric Pump

Industry:

Mechanical Pump

Performance:

Automatic Pump

Coupling Type:

High Elastic Coupling Or Pin Coupling

Pump Accessories:

Trailer, Silent Canopy, Control Panel, Fuel Tank

Supply Ability:

100000set/month

Highlight:

compact self priming water pump

high pressure centrifugal water pump

customized chemical water pump set

Product Description

Self-priming high-pressure pump is a versatile and powerful pumping system that combines
the convenience of automatic priming with the performance of high-pressure output.
Its integrated priming mechanism allows it to automatically evacuate air from the suction line and create a vacuum,
enabling it to draw water from a source below the pump's level without manual filling, even after being run dry.
Once primed, the pump operates with high efficiency to generate significant water pressure, making it ideal for
applications that require both strong suction lift and forceful discharge. These pumps are typically built with a
durable cast iron or stainless steel construction and are powered by robust electric motors or gasoline engines
to handle demanding tasks.
This unique combination of features makes it the preferred choice for a wide range of commercial, industrial,
and agricultural applications, including:
High-pressure cleaning and washing
Water supply for irrigation systems over long distances or elevation changes
Firefighting support and water transfer
Industrial fluid transfer requiring both suction and pressure
Renowned for their reliability and operational ease, self-priming high-pressure pumps offer a powerful solution where
both suction capability and high output pressure are critical.



Standard scope of Supply

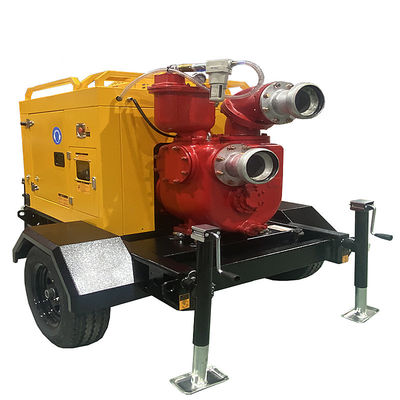

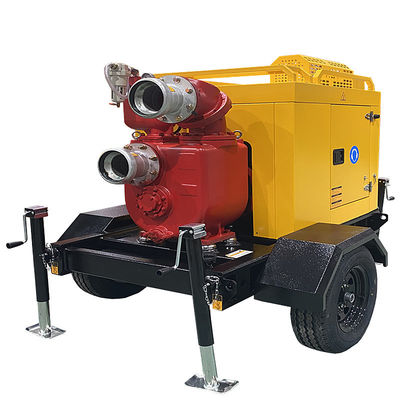

1). Diesel pump unit: Diesel engine, water pump, cooling fan, cooling water tank, steel structure base (including fuel tank 80-120L), battery, connecting wires, exhaust muffler, control panel.
2). Standard design is the pump group, the fuel tank, control panel, battery composite type.
3). Can be designed according to customer requirement pump group, the fuel tank, control panel, battery, outdoor rainproof cabinet composite outdoor type.

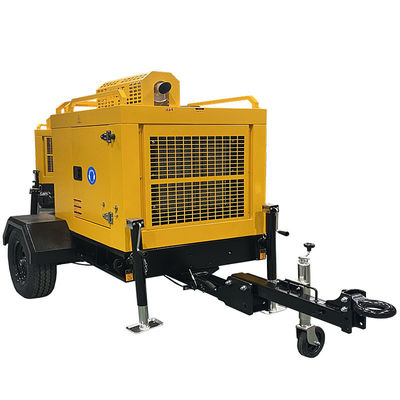

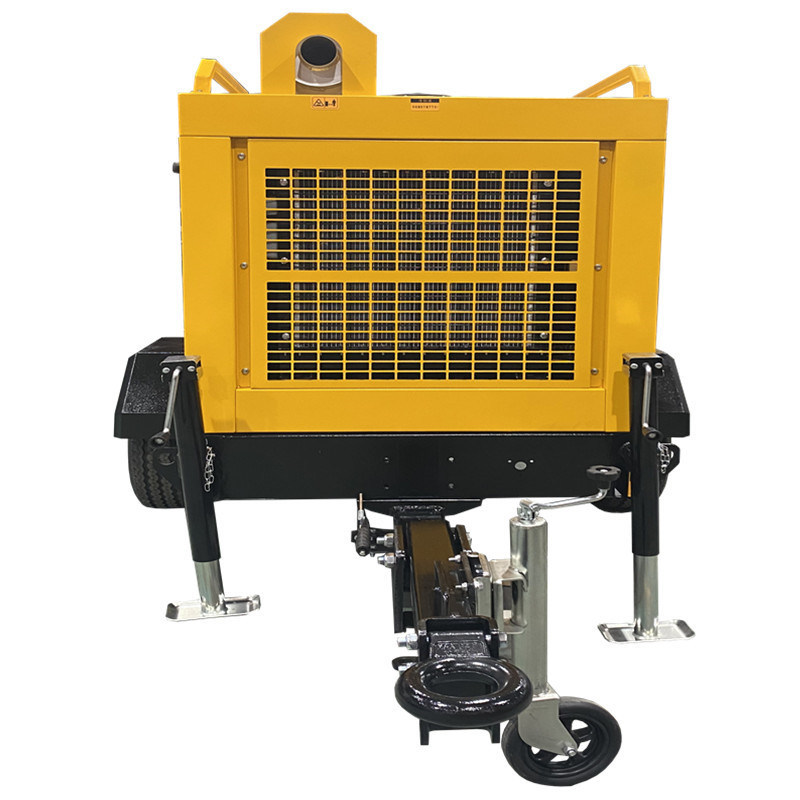

4). Can be designed according to customer requirement trailer (four or two wheels) moveable type.

Structural characteristics
Pump shell, impeller, made of ductile iron or alloy material;
With access port, easy to daily maintenance;
Mechanical seal made of silicon carbide material;
Front and rear wear discs with rubber;
The whole body laser cutting, automatic welding, phosphating spray treatment.


Can you do OEM for me?We accept all OEM orders,just contact us and give me your design. we will offer you a reasonable price and make samples for you ASAP.
How can I place the order?
Sign the PI,pay deposit,we will arrange the production. After finished production pay balance. Finally we will  ship the goods.
Warranty service

Product Description

Model	SP450QZ-25TP	SP700QZ-20TP	SP1000QZ-20TP	SP1500QZ-20TP	SP2000QZ-15TP
Inlet & Outlet Port(mm)	150	200	250	250	350
Max.Flow (m3/h)	450m3/h	700m3/h	1000m3/h	1500m3/h	2000m3/h
Max.Flow (m3/h)	(DN150)	(DN200)	(DN200*2)	(DN200*3)	(DN200*4)
Max.Head (m)	25	20	20	20	20
Speed (rpm)	1500	1500	1500	1500	1500
Solid Handing (mm)	76	76	76	76	76
Size LWH (mm)	200016501765	281017301960	330019202400	292017602050	350021002300

The above parameters are optional, and the actual model selection is selected according to the actual working conditions required by users on site. Some conditions of the data beyond the above technical parameters table, you can consult Olsen pump industry sales engineer. We will provide professional selection service, recommend suitable for your model.
