Open Frame Diesel Generator

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set

All Category

Water Pump Set

Mr. Jason Jiang

power01@sanrock.com.cn

0086 17357052522

Contact Now

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set

Brand Name:	SANROCK POWER
Model Number:	SPDG20KW
MOQ:	1 set
Price:	Chat with supplier now for more details.
Packaging Details:	Nude package for machines, Wooden box package for spare parts, Or customer demand.
Payment Terms:	MoneyGram,Western Union,T/T,D/P,D/A,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang, China

Certification:

CE;ISO

Document:

Product Nam:

Open Type Generator Set / Genset Open Type

Frequency:

50HZ/60HZ

Voltage:

48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V

Cylinder:

3/4/6/12-According To Power

Cylinder Number:

3,4,6,8,12cylinders

Phase Number And Connection:

3-phase 4-wire System

Cooling System:

Water Cooling

Dimension Of Set (mm):

1485*700*1000mm~7300*2440*2800mm

Net Weight Of Set (kg):

Specified

Rated Power (kw/1500rpm):

5-2250kva

Speed:

1500/1800RPM

Type:

Trailer Type, Silent Type, Container Type, Super Silent Type, Open Frame, Portable Type, Mobile Type, Canopy Type

Rated Power:

20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW,1800KW,2200KW

Application:

Factory,Building,Farm,Bank Etc

Usage:

Common Units, Standby Unit

Stroke:

Four Stroke

Logistics:

Whole Machine Transportation Or Disassembly Transportation; Sea Or Railway Transportation

Supply Ability:

100000set/month

Highlight:

small portable diesel generator

50HZ construction site generator

open frame diesel engine generator

Product Description

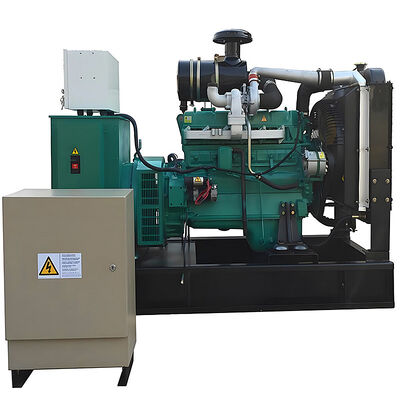

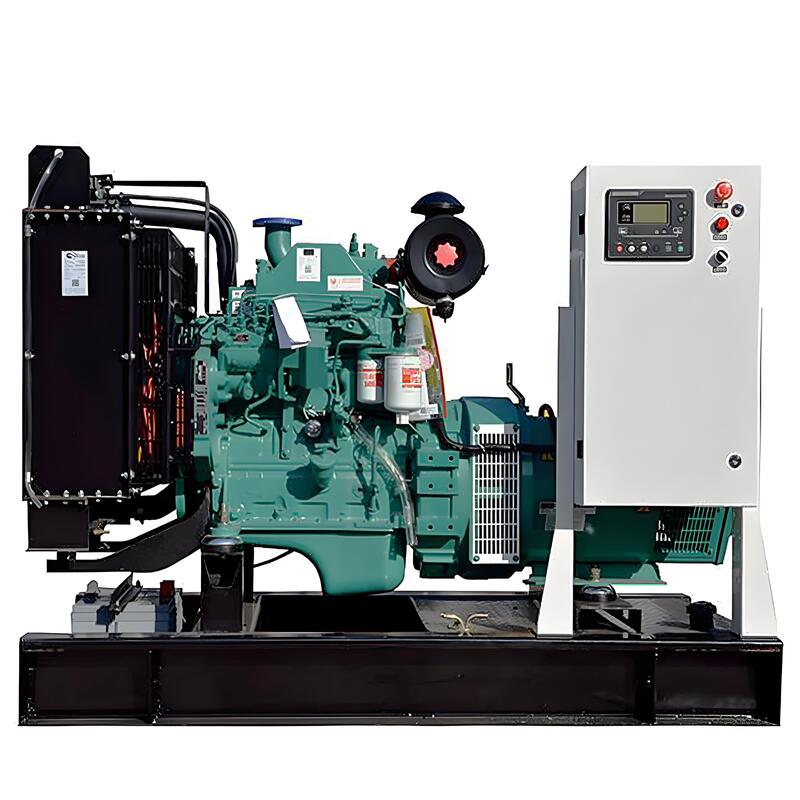

A 20KW open-frame generator is a robust and cost-effective power solution designed for a wide range of applications where reliability is crucial, and noise reduction is a secondary concern. Its sturdy steel frame provides excellent durability and ease of maintenance.
Construction and Job Sites
Primary Power Source: Provides reliable electricity for powering tools, lighting, temporary site offices, and worker welfare facilities on new construction sites before grid connection is available.
Equipment Operation: Capable of running heavy-duty equipment such as large concrete vibrators, welding machines, industrial pumps, and air compressors.

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set 7

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set 8

Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant,
Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.

Product descriptions from the supplier
100KVA 150KVA 200KVA 300KVA 400KVA 500KVA 700KVA Diesel Genset
"Contact us for specific product details or customized requirements"

Product Description

Technical parameters of diesel generator set
Generator set model:SPDG20KW
Steady state voltage adjustment rate (%):≤± 1
Generator power:20kW/25kVA
Voltage fluctuation rate (%):≤ ± 0.5
Power factor:COSΦ = 0.8 (lagging)
Transient voltage adjustment rate (%):＋20 ～－15
Output voltage:400V/230V
Voltage stabilization time (s):≤1
Generator set current:36A
Steady state frequency adjustment rate (%):≤ ± 1
Rated frequency:50Hz
Frequency fluctuation rate (%):≤ ± 0.5
Rated speed:1500rpm
Transient frequency adjustment rate (%):+ 10 ~ -7
Fuel grade:(standard) 0 # light diesel (normal temperature)
Frequency stabilization time (S):≤3
Diesel generator size:1620*620*1380(L*W*H mm
Diesel generator fuel consumption (100% load):224g/kW·h
Diesel generator weight:600kg
Diesel generator volume(LP7m):95dB(A)
Technical parameters of diesel engine
Cooling method: Closed water-cooling
Oil supply method: direct injection
Engine cylinder number: 4 / L Type
Speed regulation method: Mechanical
Bore stroke: 102*120mm
Intake method: Natural inhalation
Compression ratio: 16.5:1
Overload capacity: 110%
Start method:DC 24V Electric start
Diesel engines Speed: 1500rpm
Technical parameters of generator
Protection level:IP22
Wiring mode:Three-phase four-wire, Y-connection
Generator power: 20kW/25kVA
Adjustment method: AVR (Automatic Voltage Regulator)
Rated voltage: 400V / 230V
Output frequency: 50Hz
Insulation class: H class
Output factor: COSΦ = 0.8 (lag)

Product Name	Diesel generator
Engine	customized
Alternator	customized
Protection	genset shotdown when high water temperature,low oil pressure,shortcuit
Rated Power	20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW, 1800KW,2200KW
Cylinder number	3,4,6,8,12cylinders
Cooling System Type	Water Cooling System
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Rated Voltage	48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V
Speed	1500/1800
Frequency	50/60HZ
Diesel Engine	UK, USA, German, Japanese brand engines,4 stroke,water cooled
Alternator model	Stamford/Mecc alte brushless self-excited,IP23,Class H.
Power factor	0.8lagging
Noise level dB(a)	65-95/1m
Excitation	self-excitation
Phase Number and connection	3-phase 4-wire system
Dimension of set (mm)	*14857001000mm~730024402800mm*

Customizable Options: SANROCK POWER Machinery Co., Ltd., offers various customization options for their products, including different genset power and frequency settings. This flexibility allows users to select the most appropriate equipment for their specific requirements, ensuring optimal performance and energy efficiency.

SANROCK POWER Machinery is committed to offering competitive prices without compromising on quality. Their products come with a 3-year warranty period, which provides customers with the assurance and peace of mind necessary to confidently purchase and utilize their generators.

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set 9

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set 10

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set 11

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set 12

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set 13

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set 14

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set 15

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set 16

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set 17

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set 18

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set 19

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set 20

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set 21

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set 22

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set 23

FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck

3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
