Rapid Deployment Diesel AC Generator Towable Diesel Generator Open Frame Diesel Engine Generator Set

Brand Name:	SANROCK POWER
Model Number:	SPDG20KW
MOQ:	1 set
Price:	Chat with supplier now for more details.
Packaging Details:	Nude package for machines, Wooden box package for spare parts, Or customer demand.
Payment Terms:	MoneyGram,Western Union,T/T,D/P,D/A,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang, China

Certification:

CE;ISO

Document:

Product Nam:

Open Type Generator Set / Genset Open Type

Frequency:

50HZ/60HZ

Voltage:

48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V

Cylinder:

3/4/6/12-According To Power

Cylinder Number:

3,4,6,8,12cylinders

Phase Number And Connection:

3-phase 4-wire System

Cooling System:

Water Cooling

Dimension Of Set (mm):

1485*700*1000mm~7300*2440*2800mm

Net Weight Of Set (kg):

Specified

Rated Power (kw/1500rpm):

5-2250kva

Speed:

1500/1800RPM

Type:

Trailer Type, Silent Type, Container Type, Super Silent Type, Open Frame, Portable Type, Mobile Type, Canopy Type

Rated Power:

20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW,1800KW,2200KW

Application:

Factory,Building,Farm,Bank Etc

Usage:

Common Units, Standby Unit

Stroke:

Four Stroke

Logistics:

Whole Machine Transportation Or Disassembly Transportation; Sea Or Railway Transportation

Supply Ability:

100000set/month

Highlight:

towable diesel generator set

open frame diesel generator with warranty

rapid deployment diesel AC generator

Product Description

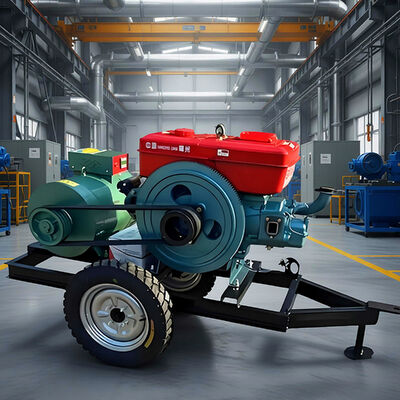

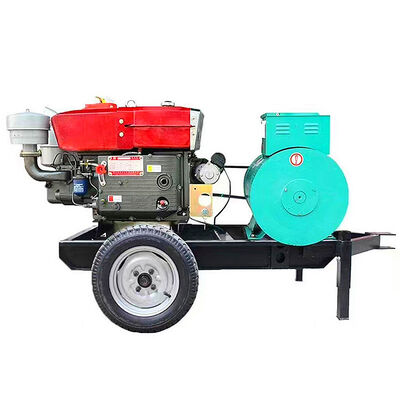

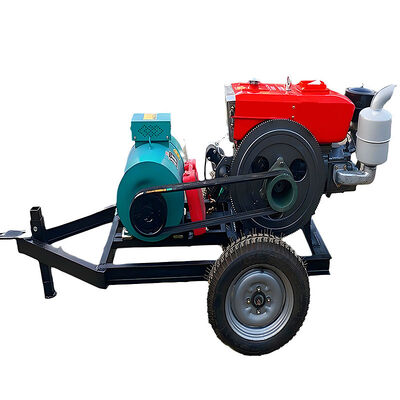

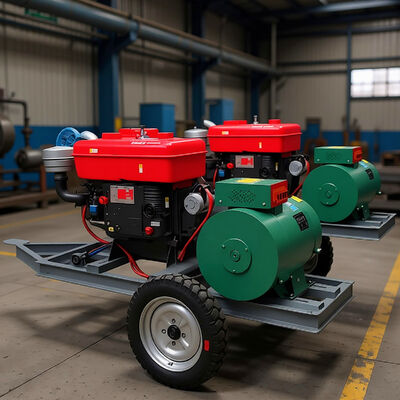

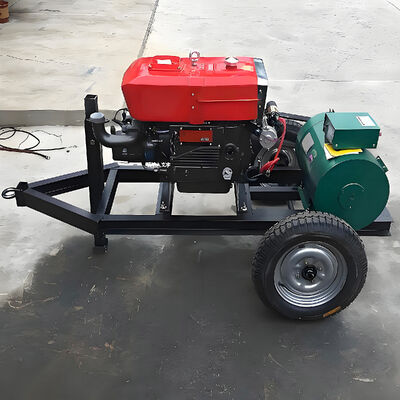

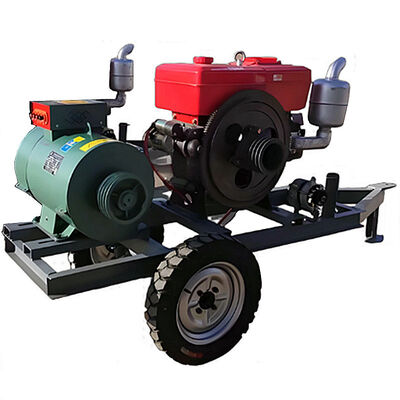

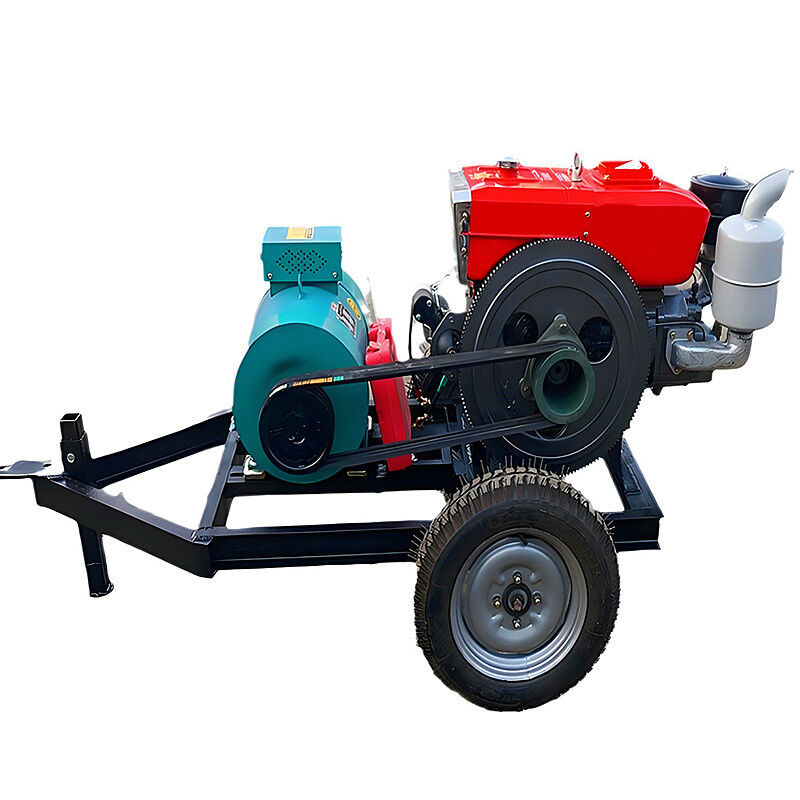

20kW Trailer-Mounted Open Frame Diesel Generator
This 20kW trailer-mounted open frame diesel generator is designed for maximum mobility and rapid deployment, providing robust power wherever it's needed. Integrated onto a heavy-duty, road-worthy trailer complete with a standard hitch, leaf-spring suspension, and robust tires, it can be easily towed by a standard vehicle to various job sites, emergency locations, or remote areas.
The unit combines the prime power reliability of a diesel engine with the practical benefits of an open frame design, which ensures excellent cooling and allows for straightforward maintenance access. The open frame is constructed with noise-dampening materials to maintain manageable sound levels despite its industrial strength.
Key Advantages of the Trailer-Mounted Design:
Ultimate Mobility: Ready to tow, enabling quick transportation between construction sites, farms, special events, or emergency power restoration areas.
Quick Setup & Stability: The trailer provides a solid and level base, allowing for immediate operation upon arrival without the need for additional mounting.
All-Terrain Ready: Built with durable, often puncture-resistant tires and a sturdy suspension system to handle rough terrain commonly found on work sites.
Integrated Safety: Features typically include trailer lights (brake, turn signals) for road safety, and may come with locking stands for enhanced stability during operation.
High Capacity & Durability: Offers the same reliable 20kW power output, large fuel tank for extended runtimes, and corrosion-resistant components as stationary models.
Ideal for contractors, rental services, event organizers, and disaster response teams, this trailer-mounted generator is the complete solution for demanding applications that require both substantial power and the freedom to move it on demand.

Rapid Deployment Diesel AC Generator Towable Diesel Generator Open Frame Diesel Engine Generator Set 9

Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant,
Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.

Product descriptions from the supplier
100KVA 150KVA 200KVA 300KVA 400KVA 500KVA 700KVA Diesel Genset
"Contact us for specific product details or customized requirements"

Product Description

Technical parameters of diesel generator set
Generator set model:SPDG20KW
Steady state voltage adjustment rate (%):≤± 1
Generator power:20kW/25kVA
Voltage fluctuation rate (%):≤ ± 0.5
Power factor:COSΦ = 0.8 (lagging)
Transient voltage adjustment rate (%):＋20 ～－15
Output voltage:400V/230V
Voltage stabilization time (s):≤1
Generator set current:36A
Steady state frequency adjustment rate (%):≤ ± 1
Rated frequency:50Hz
Frequency fluctuation rate (%):≤ ± 0.5
Rated speed:1500rpm
Transient frequency adjustment rate (%):+ 10 ~ -7
Fuel grade:(standard) 0 # light diesel (normal temperature)
Frequency stabilization time (S):≤3
Diesel generator size:1620*620*1380(L*W*H mm
Diesel generator fuel consumption (100% load):224g/kW·h
Diesel generator weight:600kg
Diesel generator volume(LP7m):95dB(A)
Technical parameters of diesel engine
Cooling method: Closed water-cooling
Oil supply method: direct injection
Engine cylinder number: 4 / L Type
Speed regulation method: Mechanical
Bore stroke: 102*120mm
Intake method: Natural inhalation
Compression ratio: 16.5:1
Overload capacity: 110%
Start method:DC 24V Electric start
Diesel engines Speed: 1500rpm
Technical parameters of generator
Protection level:IP22
Wiring mode:Three-phase four-wire, Y-connection
Generator power: 20kW/25kVA
Adjustment method: AVR (Automatic Voltage Regulator)
Rated voltage: 400V / 230V
Output frequency: 50Hz
Insulation class: H class
Output factor: COSΦ = 0.8 (lag)

Product Name	Diesel generator
Engine	customized
Alternator	customized
Protection	genset shotdown when high water temperature,low oil pressure,shortcuit
Rated Power	20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW, 1800KW,2200KW
Cylinder number	3,4,6,8,12cylinders
Cooling System Type	Water Cooling System
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Rated Voltage	48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V
Speed	1500/1800
Frequency	50/60HZ
Diesel Engine	UK, USA, German, Japanese brand engines,4 stroke,water cooled
Alternator model	Stamford/Mecc alte brushless self-excited,IP23,Class H.
Power factor	0.8lagging
Noise level dB(a)	65-95/1m
Excitation	self-excitation
Phase Number and connection	3-phase 4-wire system
Dimension of set (mm)	*14857001000mm~730024402800mm*

Customizable Options: SANROCK POWER Machinery Co., Ltd., offers various customization options for their products, including different genset power and frequency settings. This flexibility allows users to select the most appropriate equipment for their specific requirements, ensuring optimal performance and energy efficiency.

SANROCK POWER Machinery is committed to offering competitive prices without compromising on quality. Their products come with a 3-year warranty period, which provides customers with the assurance and peace of mind necessary to confidently purchase and utilize their generators.

Rapid Deployment Diesel AC Generator Towable Diesel Generator Open Frame Diesel Engine Generator Set 10

Rapid Deployment Diesel AC Generator Towable Diesel Generator Open Frame Diesel Engine Generator Set 11

Rapid Deployment Diesel AC Generator Towable Diesel Generator Open Frame Diesel Engine Generator Set 12

Rapid Deployment Diesel AC Generator Towable Diesel Generator Open Frame Diesel Engine Generator Set 13

Rapid Deployment Diesel AC Generator Towable Diesel Generator Open Frame Diesel Engine Generator Set 14

Rapid Deployment Diesel AC Generator Towable Diesel Generator Open Frame Diesel Engine Generator Set 15

Rapid Deployment Diesel AC Generator Towable Diesel Generator Open Frame Diesel Engine Generator Set 16

Rapid Deployment Diesel AC Generator Towable Diesel Generator Open Frame Diesel Engine Generator Set 17

Rapid Deployment Diesel AC Generator Towable Diesel Generator Open Frame Diesel Engine Generator Set 18

Rapid Deployment Diesel AC Generator Towable Diesel Generator Open Frame Diesel Engine Generator Set 19

Rapid Deployment Diesel AC Generator Towable Diesel Generator Open Frame Diesel Engine Generator Set 20

Rapid Deployment Diesel AC Generator Towable Diesel Generator Open Frame Diesel Engine Generator Set 21

Rapid Deployment Diesel AC Generator Towable Diesel Generator Open Frame Diesel Engine Generator Set 22

Rapid Deployment Diesel AC Generator Towable Diesel Generator Open Frame Diesel Engine Generator Set 23

Rapid Deployment Diesel AC Generator Towable Diesel Generator Open Frame Diesel Engine Generator Set 24

Rapid Deployment Diesel AC Generator Towable Diesel Generator Open Frame Diesel Engine Generator Set 25

Rapid Deployment Diesel AC Generator Towable Diesel Generator Open Frame Diesel Engine Generator Set 26

FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck

3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
